1. Product
- Manufacturer: MAXTOR
- Name: CALYPSO - DiamondMax Plus 9 /*Max Line Plus II
- Type: 3.5-inch IDE
- Speed: 7200 RPM
- Density: 80GB/platter
- Cache: 2 / **8MB
| Model |
Part Number |
Capacity (1) |
Guaranteed sectors |
Disks/Heads |
| 6Y060L0 |
6893860000 |
60GB |
120,103,200 |
1/2 |
| 6Y080L0 |
6893870000 |
80GB |
160,086,528 |
1/2 |
| 6Y120L0 |
6893880000 |
120GB |
240,121,728 |
2/3 |
| 6Y160L0 |
6916910000 |
160GB |
320,173,056 |
2/4 |
| 6Y160P0 |
6916500000 |
160GB** |
320,173,056 |
2/4 |
| 6Y200P0 |
6919680000 |
200GB** |
398,297,088 |
2/5 |
| 7Y250P0* |
6893890000 |
250GB** |
490,234,752 |
3/6 |
(1) => 1GB=1024³ Bytes / The HDD capacity size is rounded for
ease of use.
2. Specifications
- Head assembly: Giant Magneto-resistive (GMR) with RLL EEPR4
recording method
- Motor: Fluid Dynamic Bearing
- Settings: "Cable Select" (C/S) jumper settings by default
- Interface: Ultra-ATA 133
3. Performances
3.1 Timing Specifications
- From "power-on" to "ready" states time: < 8 s
- Random Average seek: < 9.1ms
3.2 Data transfer rate
- Buffer to host: 133 Mbytes/s
- Buffer to disk: 460 to 803 Mbits/s
4. Physical and Environmental Specifications:
- Dimensions:
-
- L: 147 x W: 101.6 X H: 26.1 (mm)
- Ambient Temperature:
-
- Operating: 5 to 55°C
- Storage: -40°C to 71°C
- Relative Humidity (non-condensing)
-
- Operating: 5 to 95%
- Non-operating: 5 to 95%
- Shock:
-
- Operating: 60G, 2ms
- Non-operating: 300G, 2ms
5. Power Requirements
| |
5V |
12V |
Total Power (Watt RMS) |
| Voltage Tolerances |
±5% |
±10% |
|
| Spin up during 5s max (amps PEAK) |
0.853 |
1.509 |
22.4 W |
| Seek (amps RMS) |
0.816 |
0.602 |
11.3 W |
| Read/write (amps RMS) |
0.669 |
0.410 |
8.3 W |
| Idle(amps RMS) |
0.650 |
0.323 |
7.1 W |
| Standby (amps RMS) |
0.124 |
0.037 |
1.1 W |
| Sleep Standby (amps RMS) |
0.123 |
0.037 |
1.1 W |
6. Compliance
- Safety:
-
- UL 1950 & CAS C22.2
- EN 60950 or IEC950
- Electromagnetic compatibility
-
- EN55022 (emission) & EN50024 (immunity)
- Radiated electromagnetic field emission: FCC class B part15

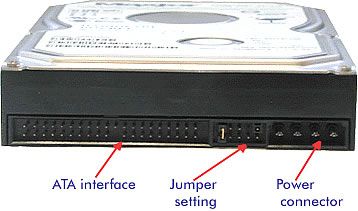

7. Jumper Settings
 |
|
 |
|
 |
| Cable Select |
|
Master or Single Drive |
|
Drive is
Slave | |
